Ruger 10-22 80% receiver jig



This jig assembly is designed specifically for 80% Ruger 10 22 style receivers with the integral picatinny rail. This unit accurately locates and provides rigid supports for all of the required drilling holes. The entire receiver can be done on a drill press inside this jig and without a mill.

AT THIS TIME, THIS JIG DOES NOT CURRENTLY FIT THE RAZOR DUE TO SOME OF THEIR RECENT DESIGN CHANGES.  ONLY USE THIS KIT FOR THE TACTACAL INNOVATIONS 80% RUGER KITS – Check with me prior to ordering.

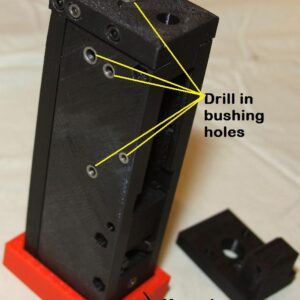

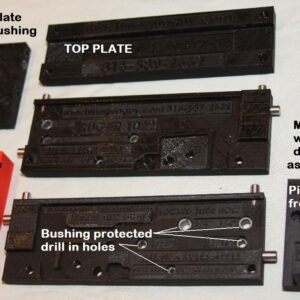

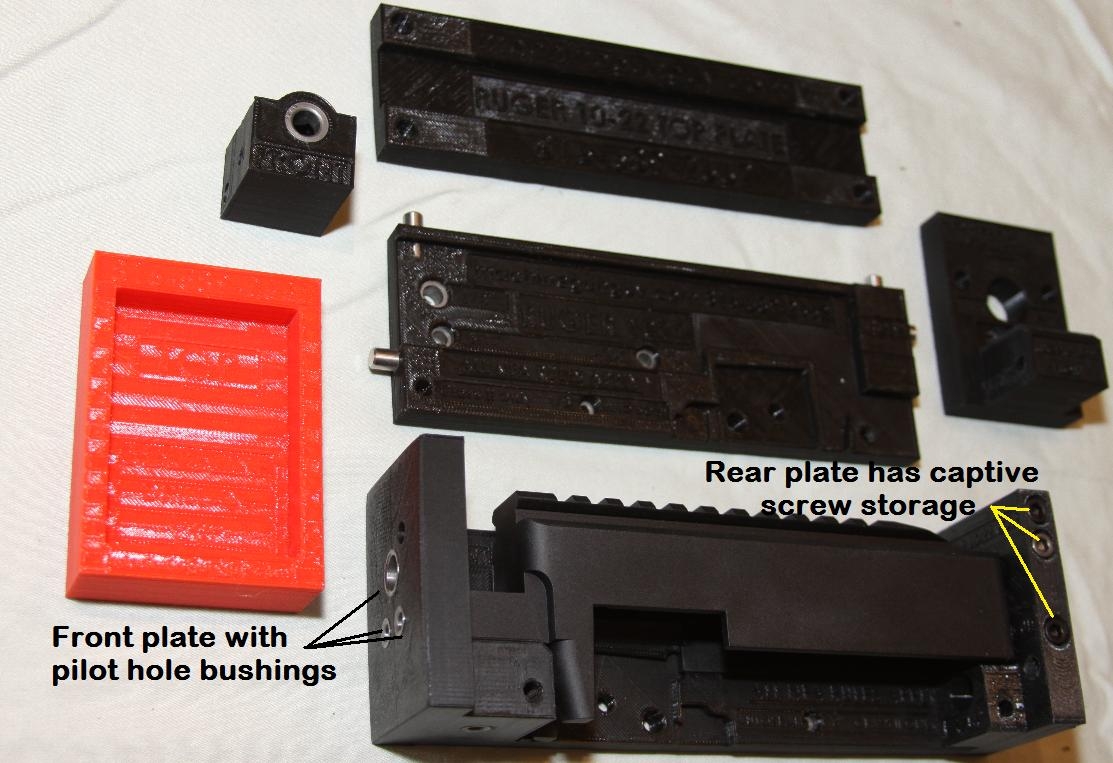

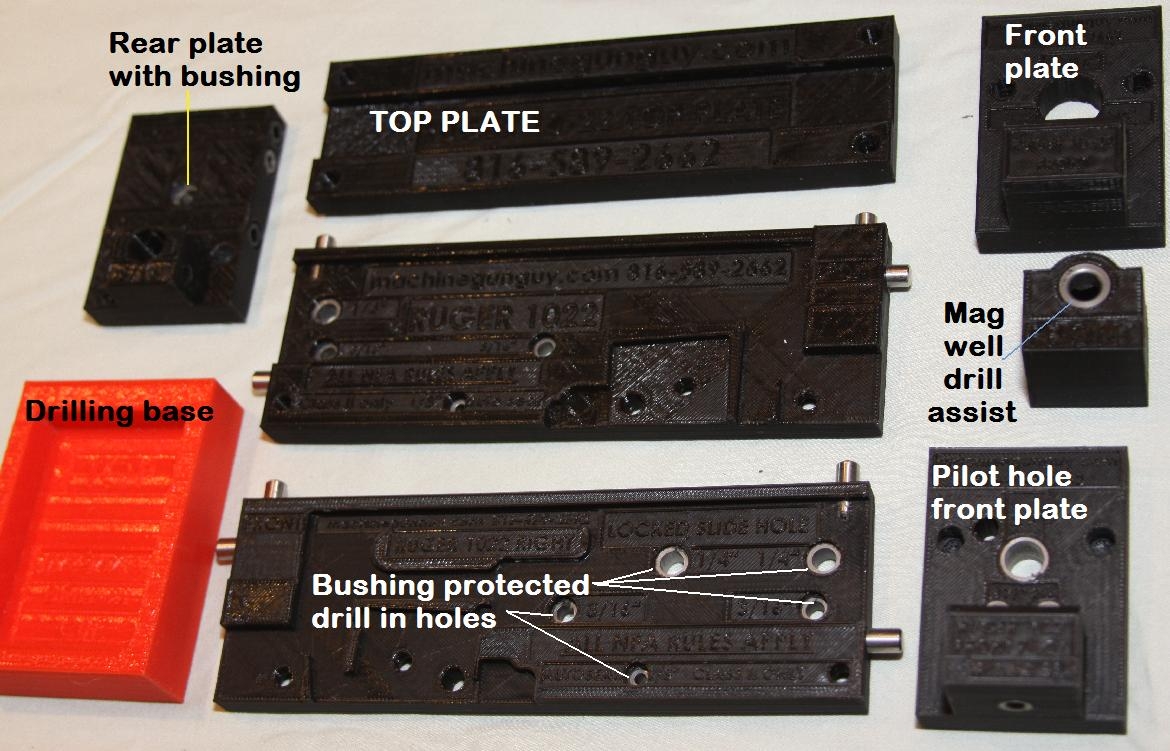

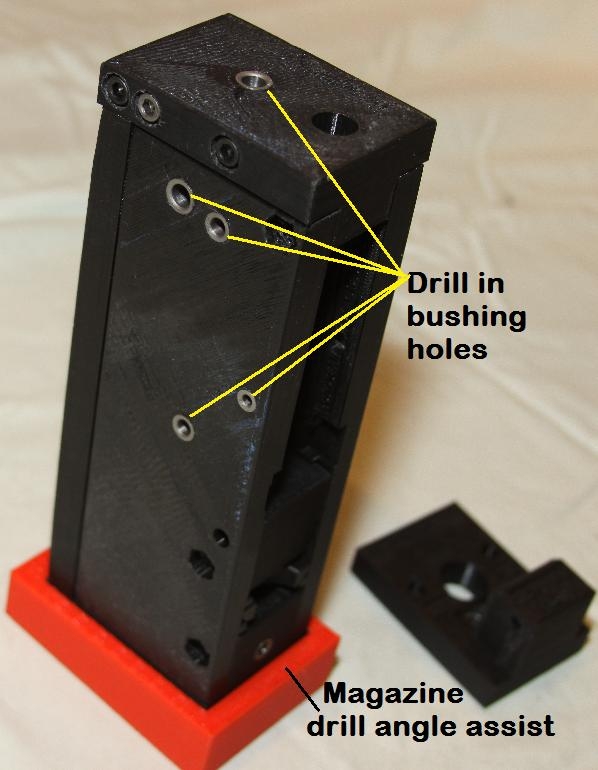

As the photos show, considerable time was spent in the design and manufacture of this 10/22 jig as well as creating the very detailed color 3D cutaway CAD drawings included in the instructions.  Instructions are attached to the email when the USPS tracking number is sent.  The magazine retaining hole has its own external drilling support assembly for the proper drilling angle from a drill press. The buttstock drilling assist block supports drilling so that no ‘walking’ can occur. There is also a second front plate for enlarging the pilot holes from the first plate. All of these internal and external devices allow the receiver to remain within the “safe” confines of the jig for the duration of the work. A patent has been applied for (patent pending).

These receivers are readily available and are even slightly less in price than their AR counterparts.  In addition, I added some other unique optional features, like the rear barrel bore cleaning hole and a “locked bolt” drill-in hole when using suppressors for stealth-like operation (the elimination of firearm cycling loading/ejecting noise).

This jig along with all of the others that I design, manufacture, and sell, was “over-engineered” for those who value their time and money.  Since I have attempted to foresee and surmount any and all possible errors which could happen during your construction(s), the possibility of your making mistakes approaches zero.

Nothing is more disappointing than a mishap that requires a replacement receiver.  Not only is there a monetary loss, but there is also the frustration factor due to the lost time in the work thus far, perhaps a broken tool or fixture, then there is the wait involved for the replacements to arrive from the other supplier via shipping.  Now what should have been reasonably fun has become work.  Those frustrations only follow my competitors’ sales and not my clients.

I also welcome design requests and if possible will accommodate those in future product revisions.  Few other sellers will boast of that.

The quality of all aspects of these kits will give the utmost confidence for the completion of your 80% receiver.  Take the time to notice all of the details including the engravings on the parts themselves in in the YouTube videos.

If in doubt about the quality of my entire jig lineup, read this Reddit link about the AK PRO (click here)

Currently I also have a complete 80% AR jig/assembly system, an AR conversion jig, an 80% AR receiver tester, as well as an AK-47/74 Class II jig for the 80% pre-bent and heat treated receivers, an AK scope mount template, an H&K flat template, a semi to select fire jig for existing HK rifles, and a semi to select-fire conversion jig for the SEF trigger pack which does not corrupt a semi auto receiver, a Class II AK-47/74 / Galil conversion jig for semi to full conversion, a Galil 80% jig, a locked slide conversion (for suppressor use) for the GSG 1911-22 and a Ruger 10-22 80% jig (also with locked bolt drill-in locator) on-line now.

Jig/template assemblies and supporting parts of the jigs in the photos are included, however (trigger groups or trigger boxes and/or trigger pack assemblies, firearms, receivers, parts, tools, milling bits, and/or drill bits are not included).

This fixture may be lawfully owned by anyone, but you (the purchaser) are solely responsible for how this item is used and I (the seller) shall not be held accountable for any misuse of this drilling jig by you (the purchaser), whether Class II or not. It is important to remember that to fully comply with ATF’s “home made” rulings, make certain that whatever manufacturer’s 80% receiver you decide to start with has not had any type of prior work done (even including work done by a friend) in the barrel area or having any drilled holes (which includes any kind of top, bottom, or side holes, marked holes, or even depressions/grooves). If it has, it would no longer meet the 80% criteria and therefore would already be classified by ATF as a live firearm and your work on it (unless you are already a Class II manufacturer) would immediately put you (the purchaser) at risk for violating the Gun Control Act.

My products are made in America, by Americans, for Americans.

Shipping is included.

To see more jig videos, click the link below:

To see more machinegun videos, click the link below:

Thunderstruck machinegun rental promo
Click photo to play

DUE TO THE NATURE OF THIS PRODUCT, THERE WILL BE NO RETURNS FOR REFUND OR TRADE.

Sales outside of the United States have to be transacted via telephone with credit card information exchanged.  Extra shipping and insurance fees as well as paperwork filings are involved.

After purchasing my jig, your credit card statement will show the following as the vendor:

ESP  or  EXTRA SENSORY PROTECTION 913-341-8564 KS
