HK Semi conversion to Full auto jig for HK 91, HK 93, HK 94
This jig assembly is designed specifically for the conversion of the semi-auto receivers into select-fire.
DO NOT PURCHASE THIS UNIT IF YOU ARE STARTING WITH AN HK FLAT – THERE IS ANOTHER UNIT LISTED SPECIFICALLY FOR YOUR STARTING WITH FLATS.
This unit accurately locates the (2) drilling holes required for all of the select-fire HK trigger packs. This simple process may be easily done with only a drill press.

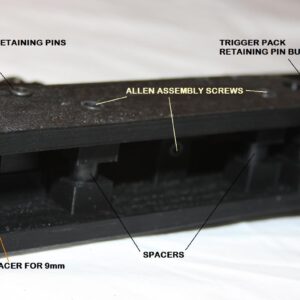

As is evident from the photos included here, considerably more time was spent in the design and manufacture of these jigs as well as creating the very detailed jig usage instructions with color 3D CAD drawings with regards to the rest of my jig product line. This HK jig works with all 90 series rifles in the HK line 94, 93, 91 (9mm, 5.56, and 7.62). A spacer is provided for the shorter chassis of the 9mm and 5.56.
Hardened steel drilling bushings have been inserted into the jig sideplates for the (2) select-fire trigger pack holes.
An innovative approach was done to keep this jig captive during the drilling process. A bolt-clamping insert was designed to keep the jig drawn up tight against the receiver. Forward and rearward facing planes contained in this jig prevent any movement either front or back. The combination of these ‘limits’ completely prevent movement in any direction.
Please feel free to ask for a free set of instructions for my jig system. Please take notice of the details including the extrusions on the parts themselves in each of these photos.
Jig/template assemblies and supporting parts of the jigs in the photos are included, however (trigger groups or trigger boxes and/or trigger pack assemblies, firearms, receivers, parts, tools, milling bits, and/or drill bits are not included).
If you want to convert to select-fire but don’t want to permanently ‘spoil’ your semi receiver, the jig setup converts the SEF trigger pack to fit on the semi-auto magazine shelf:
HK SEF modification Jig for select-fire ( full auto ) conversion of H&K 91, 93, 94
This fixture may be lawfully owned by anyone, but all NFA rules apply regarding the use of some of the features incorporated into this product. You (the purchaser) are solely responsible for how this item is used and I (the seller) shall not be held accountable for any misuse of these drilling jigs by you (the purchaser).
These items are usually ready to ship on the following business day after receipt of funds. My products are made in America, by Americans, for Americans.
Currently I also have a complete 80% AR jig/assembly system, an AR conversion jig, an 80% AR receiver tester, as well as an AK-47/74 Class II jig for the 80% pre-bent and heat treated receivers, an AK scope mount template, an H&K flat template, a semi to select fire jig for existing HK rifles, and a semi to select-fire conversion jig for the SEF trigger pack which does not corrupt a semi auto receiver, a Class II AK-47/74 / Galil conversion jig for semi to full conversion, a Galil 80% jig, a locked slide conversion (for suppressor use) for the GSG 1911-22 and a Ruger 10-22 80% jig (also with locked bolt drill-in locator) on-line now.
If in doubt about the quality of my entire jig lineup, read this Reddit link about the AK PRO (click here)

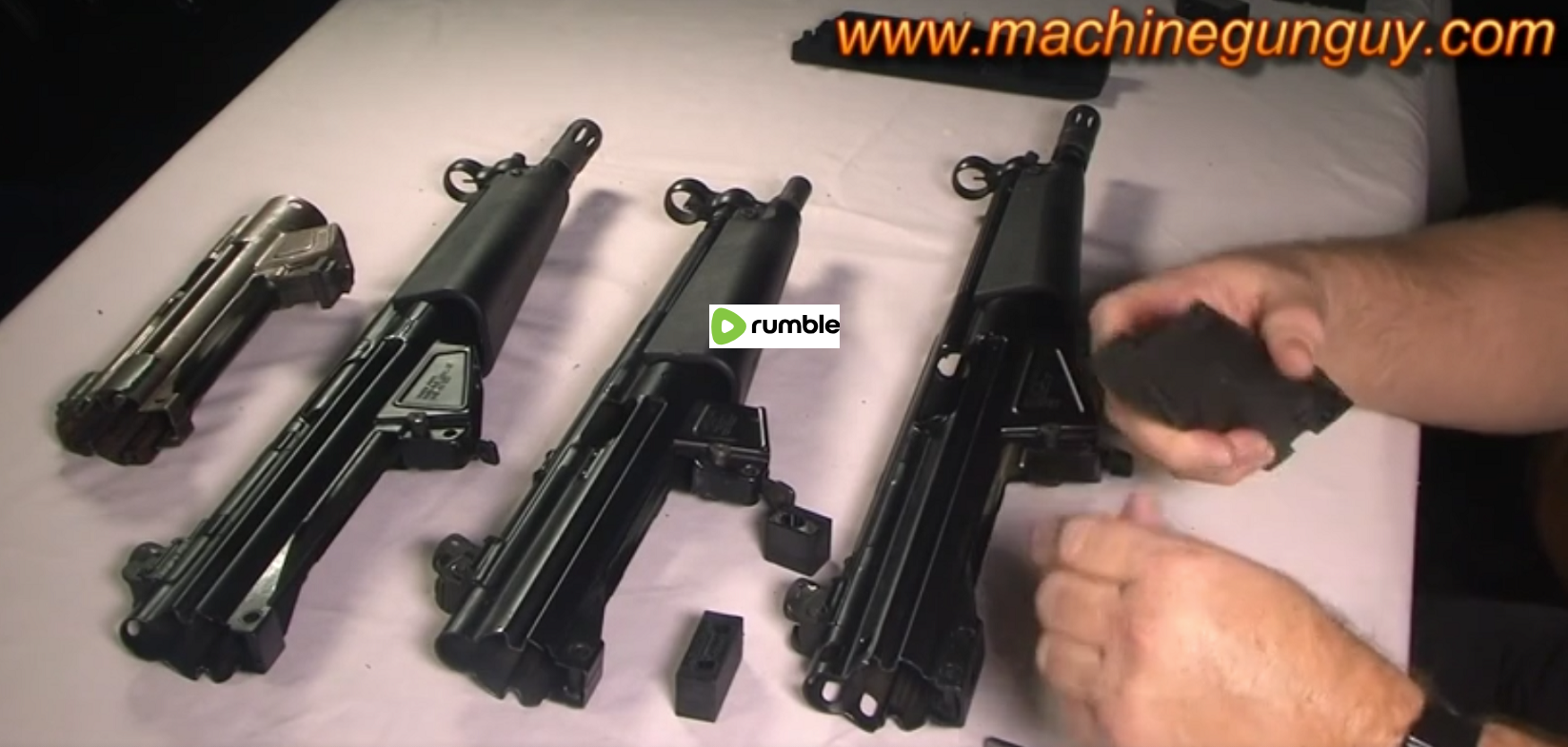

To see videos depicting both this item and the rest of my product line, click the link below.
Keep in mind that I am an 07 FFL with a Class II SOT (suppressor and machinegun manufacturer) and essentially all other internet vendors of items similar in function/use to my kits are neither licensed FFL’s nor SOT’s.
A shout out to the (4) companies renting autos (made using my AK, AR, and HK-SEF conversion jigs) on the firing line at O.F.A.S.T.S. last summer. I appreciate all of the accolades, but I sort of wished that you would have stayed at my table a little longer, giving the all-important satisfied customer speeches to all of the passersby.
Also a big thank you to Mike @ O.F.A.S.T.S. for getting me those cut IMI Galil pieces that I used to design my new Galil jig.
To see more jig videos, click the link below:
To see more machinegun videos, click the link below:
Thunderstruck machinegun rental promo
Click photo to play
There are also a lot of eye candy in my wallpaper section, click the photo below to see them all:
DUE TO THE NATURE OF THIS PRODUCT, THERE WILL BE NO RETURNS FOR REFUND OR TRADE.
Sales outside of the United States have to be transacted via telephone with credit card information exchanged. Extra shipping and insurance fees as well as paperwork filings are involved.
Shipping is included.
After purchasing my jig, your credit card statement will show the following as the vendor:
ESP or EXTRA SENSORY PROTECTION 913-341-8564 KS
