AK 47 / AK 74 side mounted scope rail installation template

$50.00

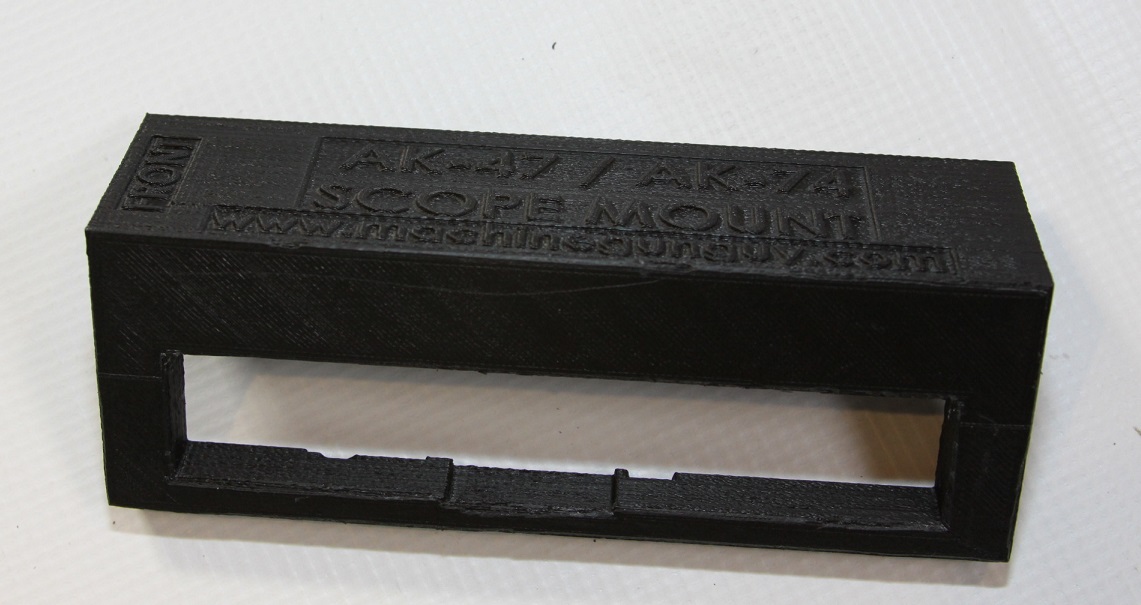

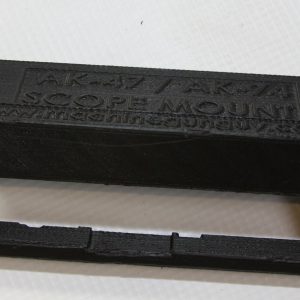

Mounting layout template for original Russian side mounted scope rail onto AK-47 / 74.

Category:

AK-47 / AK-74 side mounted scope rail installation template

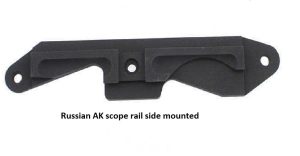

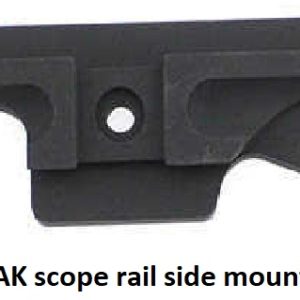

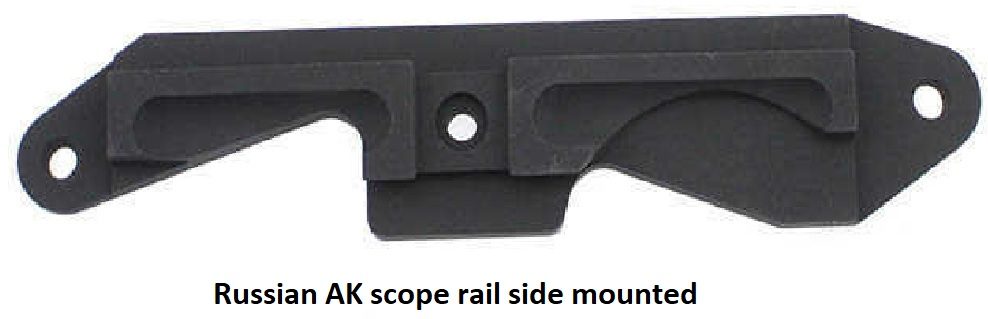

This drilling template is for the standard Russian side mounted scope rail shown below:

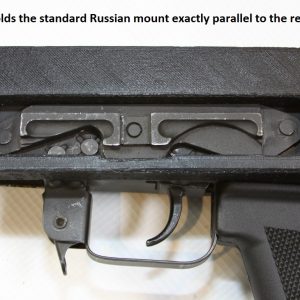

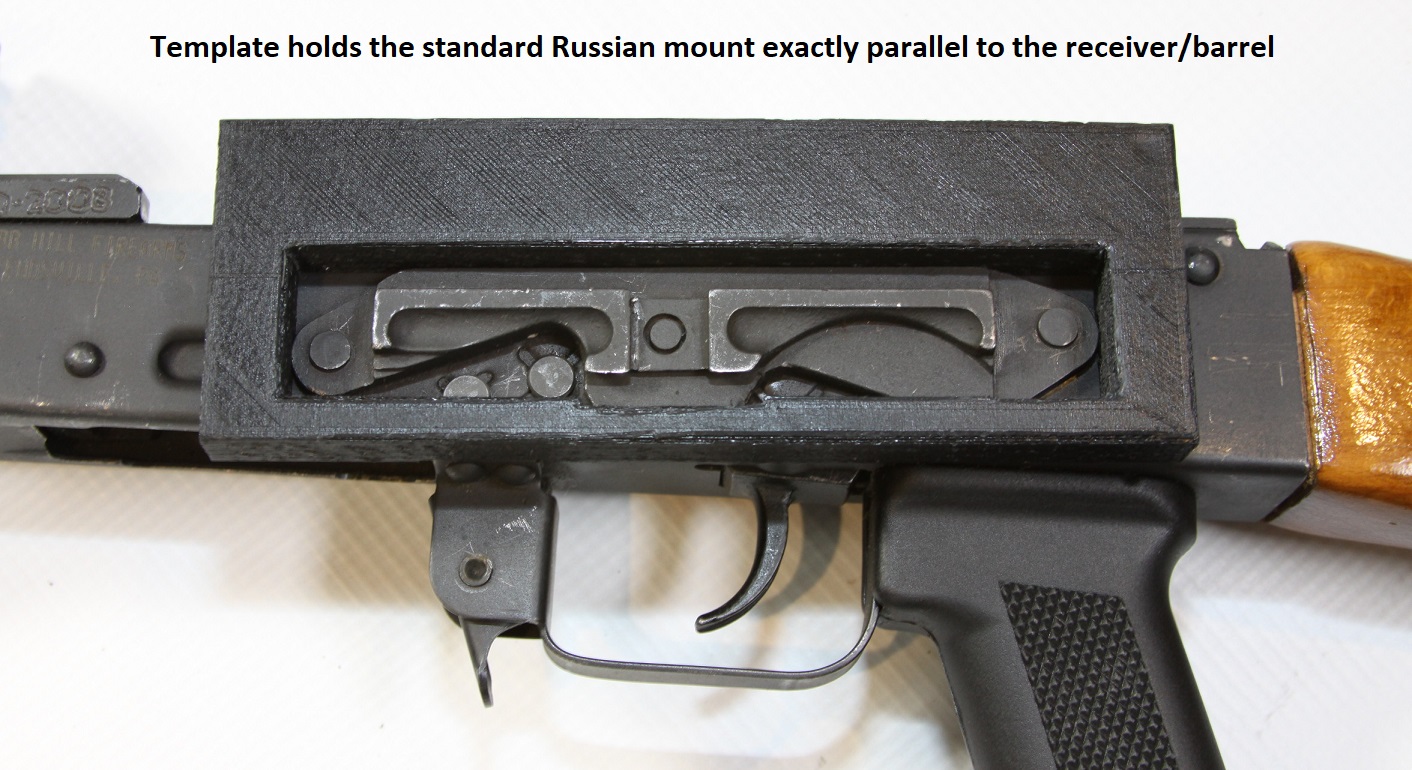

The template sets onto the receiver with both the bolt/recoil spring and top cover removed, using the receiver top’s plane as it’s reference point for making the scope’s top edge parallel.

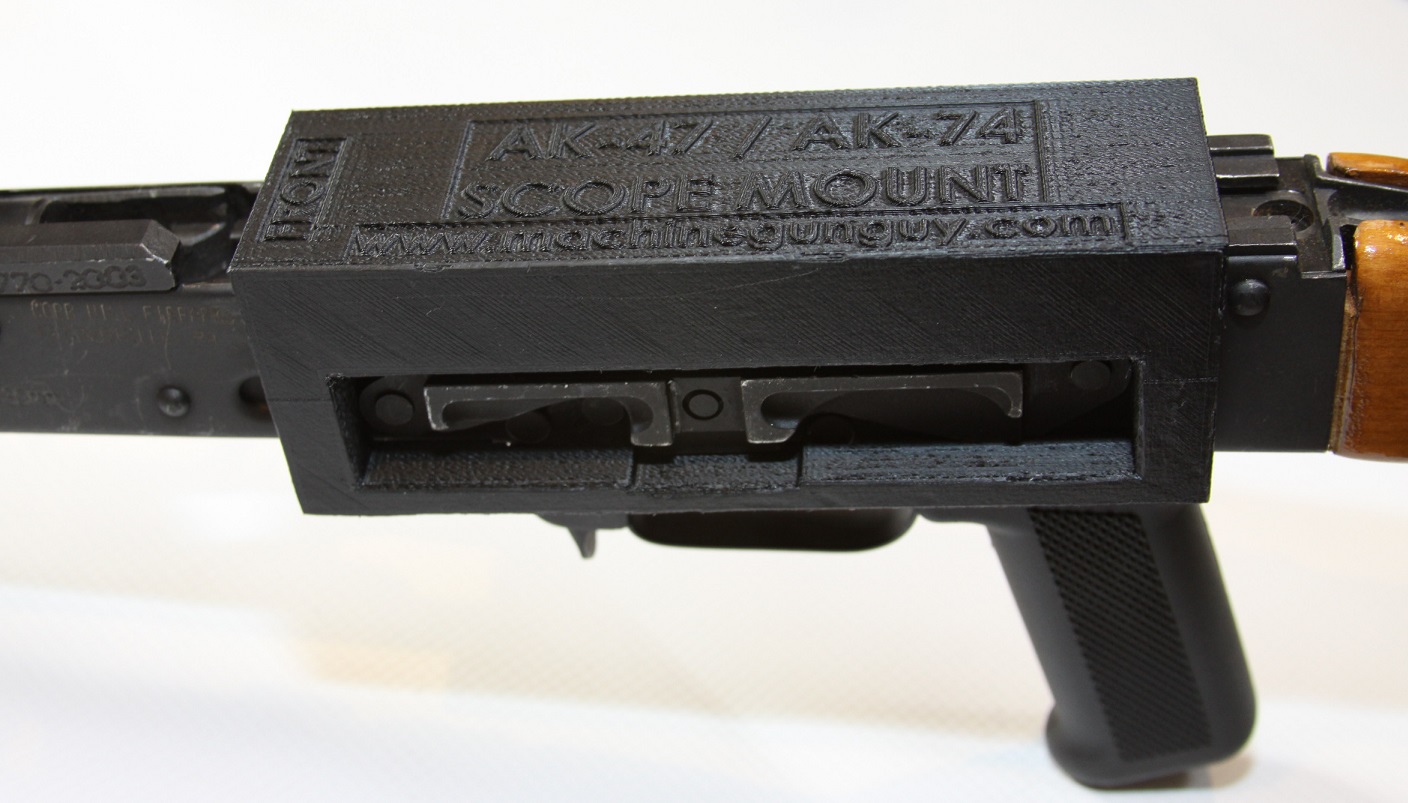

Using the front of the rear trunion as a stop stop for the template’s rear end, the template holds the above scope rail in place for drilling its 3 rivet holes which are all located for non operational interference.  Set the rivets in the mount and you are done.

Jig/template assemblies and supporting parts of the jigs in the photos are included, however (trigger groups or trigger boxes and/or trigger pack assemblies, firearms, receivers, parts, tools, milling bits, and/or drill bits are not included).

Keep in mind that I am an 07 FFL with a Class II SOT (suppressor and machinegun manufacturer) and essentially all other internet vendors of items similar in function/use to my kits are neither licensed FFL’s nor SOT’s.

A shout out to the (4) companies renting autos (made using my AK, AR, and HK-SEF conversion jigs) on the firing line at O.F.A.S.T.S. last summer.  I appreciate all of the accolades, but I sort of wished that you would have stayed at my table a little longer, giving the all-important satisfied customer speeches to all of the passersby.

Also a big thank you to Mike @ O.F.A.S.T.S. for getting me those cut IMI Galil pieces that I used to design my new Galil jig.

Shipping is included.

If in doubt about the quality of my entire jig lineup, read this Reddit link about the AK PRO (click here)

Currently I also have a complete 80% AR jig/assembly system, an AR conversion jig, an 80% AR receiver tester, an H&K flat template, a semi to select fire jig for existing HK rifles, and a semi to select-fire conversion jig for the SEF trigger pack which does not corrupt a semi auto receiver, a Galil 80% jig, a locked slide conversion (for suppressor use) for the GSG 1911-22 and a Ruger 10-22 80% jig (also with locked bolt drill-in locator) on-line now.

Here are (2) semi / select-fire jigs  for either 80% AK receiver, or as an AK conversion jig:

AK 47 / AK 74 80% receiver / flat Jig includes select-fire ( full auto ) compatability

AK 47 / AK 74 Galil Class II Conversion Jig for select-fire ( full auto ) – not for 80% receiver blank
